Add Realistic Artwork to a Wrinkled Surface with Photoshop's Displacement Map

Photoshop offers Warp, which allows you to bend artwork. Warp is great for cylindrical mapping, or bending art in a flag-like wave. The Liquify filter allows you to push pixels around as if you were working with wet finger paint. But to place artwork realistically on an irregular surface, you need Displacement Maps.
Displacement mapping requires two players: The image you wish to warp (whose pixels you wish to displace), and the image to be used as a map (the displacement map). Usually, maps are grayscale images.
In this exercise, we need to “print” a logo on a sweatshirt so that it falls realistically down in the folds of the cloth.

1. To create the map, duplicate the image: Image > Duplicate. Name the image ShirtMap (Figure 1).

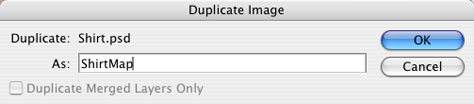

Figure 1: Duplicate the image to begin creating a Displacement Map.

2. Convert the image to grayscale: Image > Mode > Grayscale.
3. If there’s a lot of little granular detail, the mapped artwork will go into every little nook and cranny. You just want the artwork to follow the general shape of the cloth, not every little tiny nub. So blur the image to smooth out texture, but keep the “bends.” Choose Filter > Blur > Gaussian Blur. Experiment with the sliders until the surface is smooth, but you still have the light-and-dark of the fabric’s folds (Figure 2).
Figure 2: Blurring the grayscale map enables the artwork to follow the large folds of the fabric smoothly, without being roughened by the texture of the fabric itself.

4. Save the map image as a PSD or TIFF. You can close it or leave it open?—?it doesn’t matter. But the image must be saved to disk so Photoshop can identify it when you need to use it as a map.
5. Return to your original color image by clicking on its title bar.
6. Place the artwork onto the shirt. You can copy and paste from another image, or use File > Place to bring in either vector art or another image. Use the handles of placed art to scale and rotate as necessary. When you’re finished positioning and manipulating the artwork, click the checkmark in the Options bar at the top of the interface, or press the Enter/Return key on your keyboard (Figure 3).

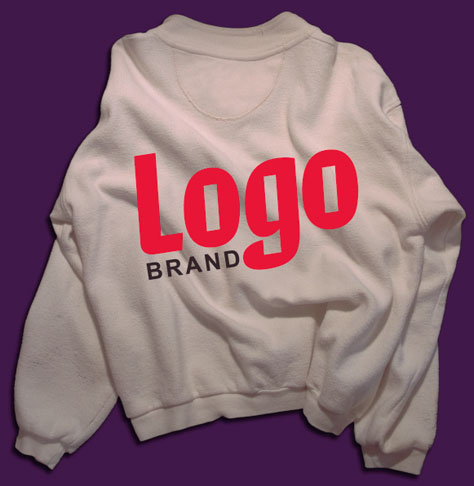

Figure 3: Artwork positioned, and ready to be distorted by the Displacement Map.

7. If you use File > Place for vector artwork, the artwork will automatically be converted to a Smart Object. While vector Smart Objects offer the advantage of being endlessly scalable with no loss of detail, they won’t allow themselves to play with Displacement Maps. (Note that raster Smart Objects are subject to loss of detail when scaling, since they are pixel-based.)
To convert the Smart Object to pixels so you can distort the logo, make sure you are satisfied with the size and angle of the artwork, and then choose Layer > Rasterize > Smart Object.
8. Now it’s time to use the Displacement Map. Choose Filter > Distort > Displace. In the Displace dialogo box (Figure 4), accept the default options and click OK.
Figure 4: The default Displacement settings are usually satisfactory, so just click OK.

Photoshop then asks which image you want to use as the Displacement map. Navigate to the map image you created, and select it (Figure 5).

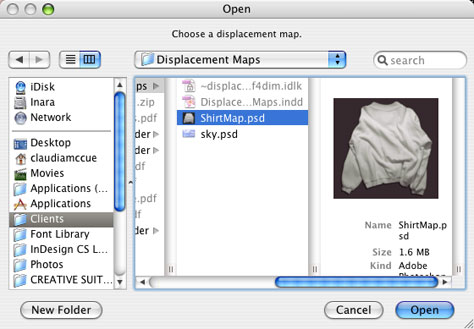

Figure 5: Choose the map image you created earlier.

9. The artwork is “bent” nicely, but still looks fake. You need to allow the shading of the shirt show through the logo artwork. To do this, change the blending mode of the logo artwork layer to Multiply (Figure 6).
Figure 6: the artwork seems to be floating above the shirt (immediately below). Change the blending mode of the artwork layer to Multiply, and then the shading of the underlying image shows through the logo artwork (below center). The Blending Mode control is at the top of the Layers palette (bottom).

10. For even more fun, you can make the logo artwork act as a mask for layers above, by creating a Clipping Group. Even though we tend to think of masks as needing to be above the content they mask, Clipping Groups work from underneath.
Above the logo art layer, create another layer containing artwork. You can copy and paste, or use File > Place to bring in raster or vector art (Figure 7). You won’t need to rasterize a Smart Object for this trick to work, though.

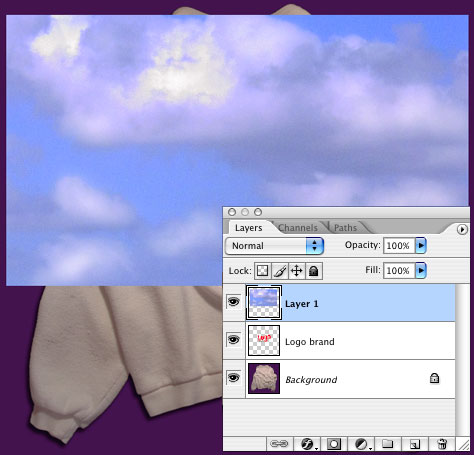

Figure 7: In a layer above the distorted logo, place artwork to be masked by the shape of the logo art.

Once the top layer is in place, hover over the dividing line between the log art layer and the new layer above it. Hold down Alt (Windows) or Option (Macintosh), and when you see the strange little icon made of two interlocking circles and an arrow, click on the dividing line.
Figure 8: Creating a Clipping Group. Hover between the layers, hold down the Alt (PC) or Option (Mac) key, and then click (immediately below). The thumbnail for the top layer is indented, and now sports a downward-pointing arrow indicating that it’s masked by the contents of the next layer down. The masked layer also inherits the blending mode of the bottom layer of the group (bottom image).

This how-to originally appeared on

Claudia McCue incorporates more than 20 years of traditional and digital prepress production experience in her current incarnation as a consultant, trainer, and author devoted to the graphic arts industry. Claudia's company, Practicalia LLC, provides custom onsite training for a national client base of design firms, printing companies and marketing professionals. She is the author of Real World Print Production With Adobe Creative Cloud (Peachpit Press, 2013), and a frequent presenter at industry conferences. She is also the presenter for several titles, including "Acrobat X: Creating Forms," "Print Production Fundamentals," and "Up & Running With Acrobat XI Pro." When not chained to the computer, she can be found riding her motorcycle on country roads. She swears it’s the cure for writer’s block.
  • Anonymous says:

    This is a great feature. I have used it before in the past. But what I would like to see, is how to REMOVE a white logo from a crinkly shadowed black shirt.

  • Anonymous says:

    That was well explained – thank you so much! Adobe used to have a 3-D program with similar shape-mapping capability but it is no longer available. This is a great substitute.

  • Anonymous says:

    This is a fantastic tutorial… very practical indeed! Thanks…

  • Guy Man says:

    Clone Stamp, BRO!

  • Stay Inspired Design says:

    This has really helped, and this could be a stupid question, but whenever I apply the Multiply mode it more so just takes away the colour of the art. I understand that is part of the idea behind it, but it sort of just looks like I decreased the opacity, to the point that it is essentially see through. Any ideas?

    • Henriete says:

      I had the same problem! I just duplicated the layer a few times and got it to the right color. Afterwards I just gave it some finishing touches by editing the opacity :)

  • James Lewis says:

    Thank you so much! Exactly what I needed.

  • Kora says:

    Thanks for this tutorial! That’s exactly what I was looking for!

  • Tabitha Topola says:

    Thank You!!!! <3

  • leftyjp says:

    When I apply the “multiply” blending mode the logo completely disappears. It’s so weird. Any thoughts?

  • chris says:

    I’m in the4 same boat as a couple folks above, when using multiply the color fades. I am using bright colors over a dark background. and I don’t want to avoiding using multiply as the result if not great.
    I also attempted to use multiple layers as suggested above and had no luck.
    Any additional suggestions?

  • Claudia McCue Claudia McCue says:

    If you’re placing the artwork over a dark background, this complicates both the creation of the map image and the choice of blending mode. I’ll have to contemplate a plan of action on this, but if you have successfully created a map image, then just use the “Normal” blending mode, with a slight reduction in opacity. Let me know how that turns out.

  • >
