Tip of the Week: Precisely Positioning Column Guides

This tip was sent to Tip of the Week email subscribers on February 12, 2015.

InDesignSecrets Tip of the Week

Sign up now and every week you’ll get a new InDesign Tip of the Week and Keyboard Shortcut of the Week, along with roundups of new articles at InDesignSecrets and CreativePro, plus exclusive deals sent right to your Inbox!

Just scroll all the way down to the bottom of this page, enter your email address, and click Go! We’ll take care of the rest. Now, on with the tip!


Precision is a hallmark of professional quality work (and tools). And with InDesign, you can easily position objects and page guides with an accuracy of one thousandth of a point. That’s smaller than a micron, or to put it in biological terms, smaller than the bacteria living on your keyboard (ewww!)

More after the jump! Continue reading below
Free and Premium members see fewer ads! Sign up and log-in today.

20150212-totw2

But that ability to precisely position objects does not extend to column guides. You can move column guides by unlocking them first (choose View > Grids & Guides > Lock Column Guides).

20150212-totw1
Then just position your cursor over a column guide and drag.

20150212-totw3

Unfortunately, you can’t use the Control panel to enter a precise X coordinate. And holding Shift will not make the column guides snap to your ruler tick marks.

Instead, you can use page guides to help you position column guides. First, make sure that you have Snap to Guides turned on (View > Grids & Guides > Snap to Guides).

20150212-totw6
Place a page guide exactly where you want one side of the column guide to go. And then drag the column guide until it snaps to that spot.

20150212-totw4

20150212-totw5

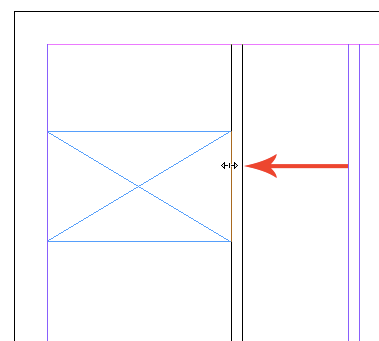

You can also drag a column guide so it snaps to a page object.

20150212-totw11

And you can use a document grid to position column guides.

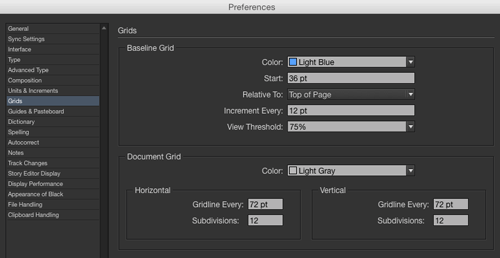

First, set up your document grid as desired in Preferences.

20150212-totw7

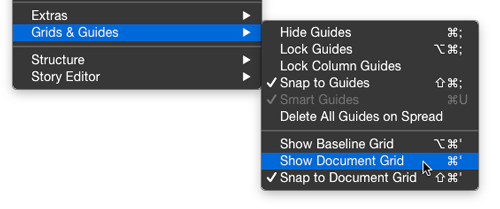

Then enable Snap to Document Grid and Show Document Grid in View > Grids & Guides.

20150212-totw9
And finally, drag the column guides to the desired grid line.

20150212-totw10
